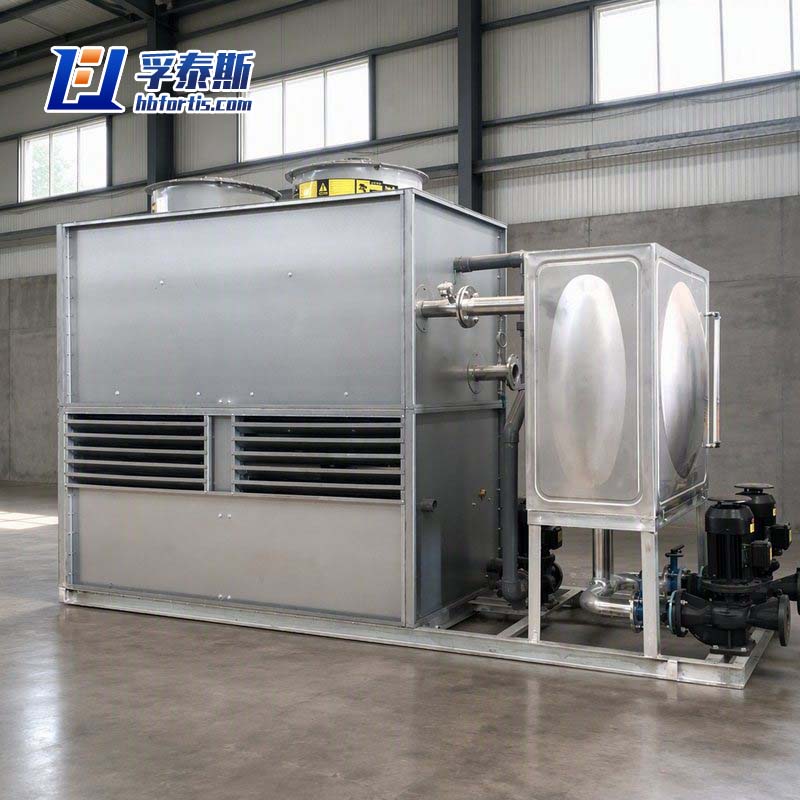

As a China-based factory-exclusive supplier, we engineer the AHBLG-700 stainless steel cooling tower specifically for continuous chemical synthesis lines where reactor jacket water must drop from 42°C to 34°C under 80% RH ambient conditions. Unlike standard galvanized units, this model integrates a full 316L stainless steel cold-water basin and PVC drift eliminators to resist chloride-induced pitting in coastal fertilizer plants. Our export track record covers Vietnam PP production facilities and Chilean copper solvent-extraction sites, with each unit hydro-tested before container loading. We provide 2D P&ID drawings and motor startup curve data alongside the commercial invoice, enabling your local installer to anchor the tower without foundation redesign. Direct OEM branding available for project tenders above 5 units.
كتيب منتجات شركة هيبي فورتيس للتكنولوجيا المحدودة
Product Advantages
Full 316L Stainless Steel Wetted Surface – Not Just Coated
Unlike conventional carbon steel or galvanized towers that rely on thin epoxy coatings prone to chipping and rusting within 18 months, the AHBLG-700 features a genuine 316L stainless steel cold-water basin, distribution pan, and support frames. This metallurgical choice delivers intrinsic chloride resistance up to 1000 ppm, making the tower ideal for coastal installations, brackish makeup water, or processes with acidic condensate carryover. You eliminate annual repainting costs and avoid unplanned shutdowns caused by perforated basin floors.
Precision-Engineered for Exothermic Chemical Reactor Duty
The AHBLG-700 is not a generic HVAC cooler; it is thermally rated for continuous 24/7 operation on reactor jacket and condenser circuits. It delivers a stable 700 m³/h flow with a 8°C ΔT (40°C inlet to 32°C outlet) at a 28°C wet-bulb design point – a performance curve specifically validated for polyester, PVC, and specialty chemical production lines. The oversized air inlet louvers and low-fill velocity (2.8 m/s) prevent liquid carryover that could contaminate sensitive catalyst systems downstream.
Abrasion-Resistant Fill & Nozzle System for Dirty Water Tolerance
Standard cooling towers clog frequently when suspended solids exceed 30 ppm, but the AHBLG-700 incorporates heavy-gauge PVC fill with 19mm flutes and stainless-steel spiral spray nozzles with a 12mm orifice diameter. This design handles up to 50 ppm total suspended solids without significant fouling, and the self-cleaning nozzle geometry reduces manual cleaning intervals by 60% compared to ceramic or plastic nozzle competitors – a critical advantage for dye, pigment, or fertilizer plants using recycled process water.
Parameter Specifications
|
|
||||||||||
|
Product |
Square Cross Flow Cooling Tower |
|||||||||
|
Model |
τ=28℃ |
Main Dimensions (mm) |
Air Volume m³/h |
Fan Diameter (mm) |
Motor Installed Capacity (kw) |
Weight (t) |
τ=28℃ |
Noise at standard point |
||
|
Total Height |
Length× |
self-weight |
operating weight |
|||||||
|
AHBLD/HBLD-300 |
300 |
4514 |
7250× 3810 |
167000 |
3400 |
7.5 |
5.85 |
13.38 |
/ |
59.0 |
|
AHBLD/HBLD-500 |
500 |
5230 |
8033× 4650 |
260000 |
4200 |
11.0 |
9.2 |
17.24 |
/ |
61.5 |
|
AHBLD/HBLD-700 |
700 |
5319 |
8930× 6640 |
370000 |
5000 |
18.5 |
12.95 |
26.05 |
/ |
62.6 |
|
AHBLCD/HBLCD-300 |
300 |
6230 |
10650× 3810 |
167000 |
3400 |
7.5 |
7.05 |
14.18 |
/ |
52.5 |
|
AHBLCD/HBLCD-500 |
500 |
7030 |
11640× 4650 |
260000 |
4200 |
11.0 |
10.8 |
18.84 |
/ |
53.7 |
|
AHBLCD/HBLCD-700 |
700 |
7180 |
12540× 6640 |
370000 |
5000 |
18.5 |
14.75 |
26.81 |
/ |
54.5 |
|
AHBLG/HBLG-300 |
/ |
4514 |
7250× 3810 |
200000 |
3400 |
11.0 |
6.13 |
13.66 |
300 |
64.5 |
|
AHBLG/HBLG-500 |
/ |
5230 |
8033× 4650 |
320000 |
4200 |
18.5 |
9.42 |
17.46 |
500 |
65.0 |
|
AHBLG/HBLG-700 |
/ |
5319 |
8930× 6640 |
450000 |
5000 |
30.0 |
13.19 |
26.29 |
700 |
66.0 |
|
The standard point noise is measured at a distance equal to the equivalent diameter of the air inlet window or its shield equivalent diameter, and 1.5 meters above the ground. The equivalent diameter Dₘis calculated by the formula: Dₘ= 1.13×Length×Width |
||||||||||
|
Payment |
T/T, Western Union. |
|||||||||
|
Service |
Customize and design the size and style according to requirements |
|||||||||
