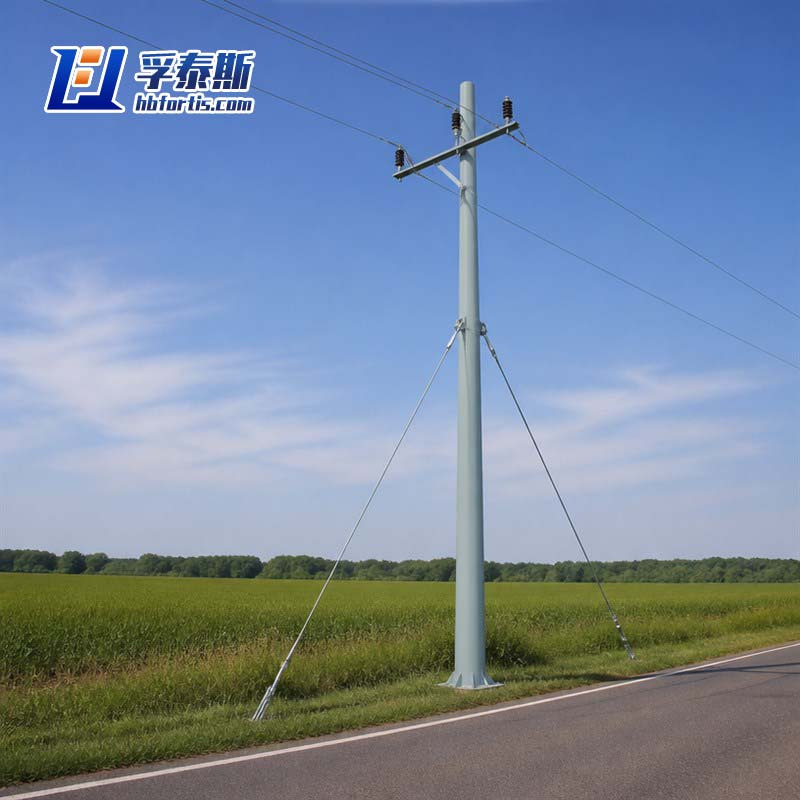

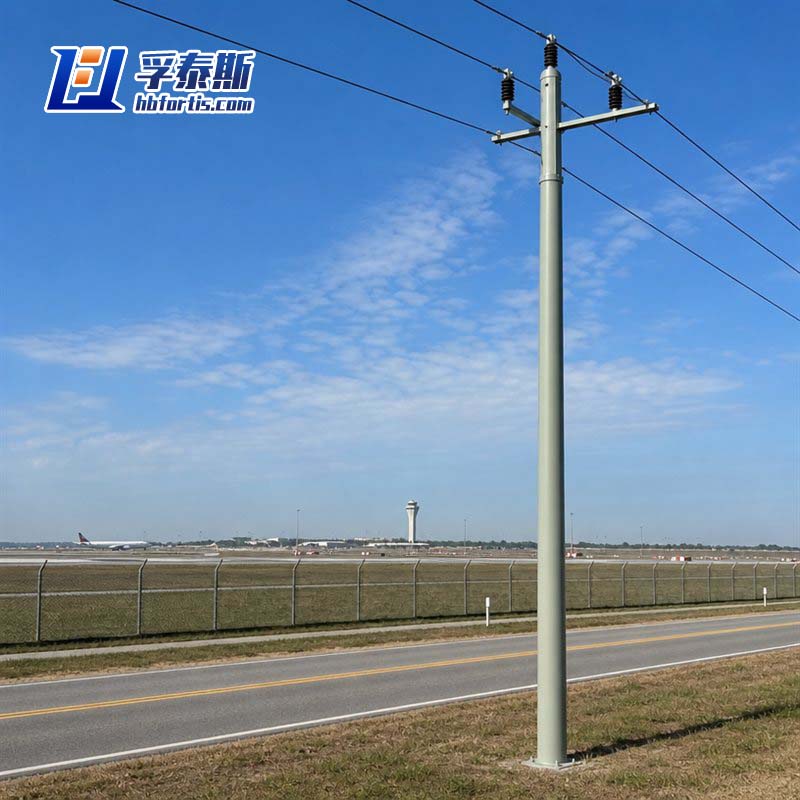

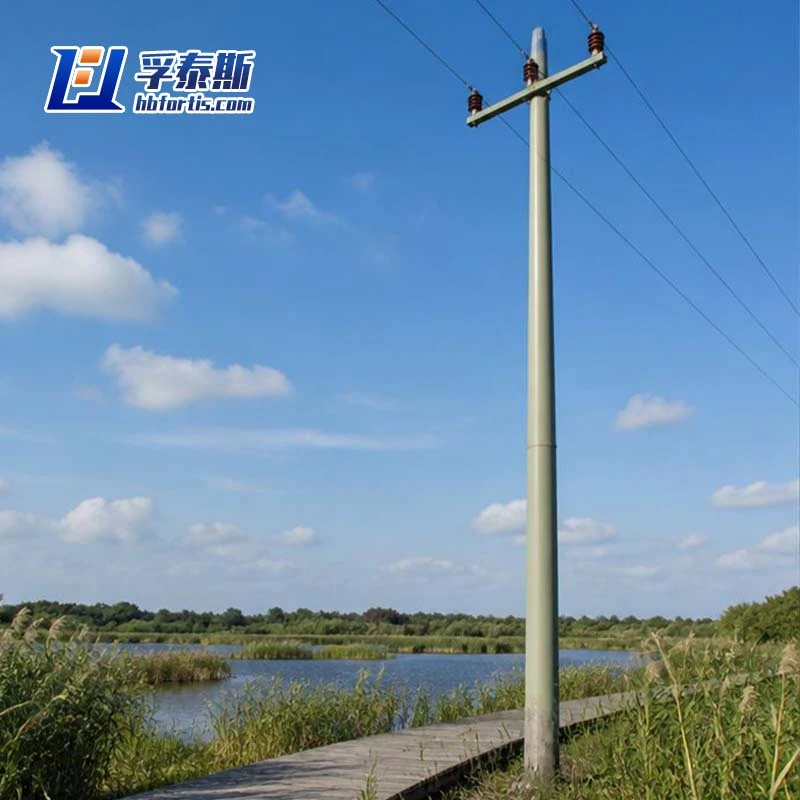

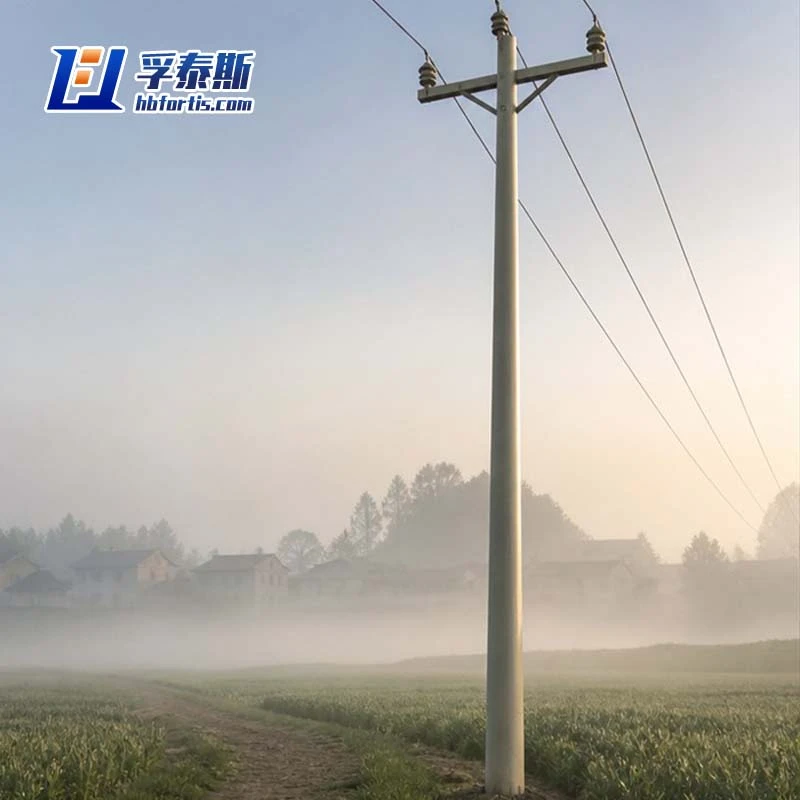

As a direct China factory exporter of GFRP utility poles, we serve power distribution, telecom network and rural electrification projects that demand lightweight, corrosion-resistant and long-lasting pole solutions. Our fiberglass utility poles are engineered for coastal, storm-prone and high-humidity environments, helping overseas utilities and EPC contractors cut installation and maintenance costs. With factory-direct pricing, customizable dimensions and export-ready packaging, we support buyers seeking a reliable GFRP pole supplier for large-scale or repeat orders.We are a China-based manufacturer and exporter of GFRP utility poles, supplying fiberglass composite poles directly from our factory to utilities, telecom operators and EPC contractors worldwide. Our poles are designed for coastal power distribution, storm-prone grids, rural electrification and telecom network deployment, offering high strength, anti-corrosion performance and low maintenance. As a direct exporter, we provide competitive factory pricing, customized specifications and reliable export support for bulk orders.
كتيب منتجات شركة هيبي فورتيس للتكنولوجيا المحدودة
Product Advantages
Design Flexibility and Customization
GFRP poles can be pultruded or filament-wound in a wide range of lengths, diameters, wall thicknesses, and colors. Manufacturers can tailor stiffness, taper, and mounting configurations to meet specific load requirements, such as NESC or IEC standards. This flexibility allows utilities and EPC contractors to specify poles that match exact project conditions rather than settling for standard sizes.
Environmental and Sustainability Benefits
GFRP poles are often considered a more sustainable option than traditional materials. They do not require chemical preservatives like chromated copper arsenate used in wood poles, and they avoid the carbon-intensive production of steel and concrete. Their lightweight nature also reduces fuel consumption during transport and installation, contributing to lower overall project emissions.
Fast and Cost-Effective Installation
Because GFRP poles are lighter and can be pre-drilled or pre-assembled at the factory, installation is typically faster and less labor-intensive. Crews can use smaller equipment, reduce site preparation time, and complete projects in shorter windows. This speed translates directly into lower installation costs and less disruption to communities or traffic.
Resistance to Extreme Weather and Seismic Events
GFRP poles perform well under extreme weather conditions, including high winds, ice loading, and seismic activity. Their composite structure can flex under load and return to shape without permanent deformation, unlike concrete which may crack or steel which may bend permanently. This resilience helps maintain grid reliability during storms, hurricanes, and earthquakes.
Application Scenarios
Solar power plants and renewable energy sites often use FRP utility poles for panel array supports, inverter station connections and grid tie-in lines. The poles are non-conductive, UV-resistant and unaffected by the temperature fluctuations typical of large open installations. Their lightweight nature also reduces foundation requirements and installation costs, making them an efficient solution for utility-scale solar farms, especially in remote or environmentally sensitive locations.
Along railways, highways and toll roads, FRP utility poles support signaling systems, lighting, cameras, communication equipment and emergency power lines. Their resistance to vibration, weather and corrosion keeps them stable in high-traffic environments, while their non-conductive properties improve safety for maintenance crews working near electrical systems. Transportation authorities also value their low maintenance profile, which minimizes traffic disruption during inspection or repair work.
In coastal regions, salt spray and high humidity rapidly degrade wooden and steel poles. FRP utility poles are inherently resistant to saltwater corrosion, making them a preferred choice for seaside towns, ports, marinas, offshore platforms and island electrification projects. They do not rust, rot or attract marine borers, and they maintain their mechanical properties even after years of exposure to aggressive marine conditions, which significantly reduces replacement cycles and maintenance costs.
Parameter Specifications
|
Product |
FRP Utility pole / telephone pole |
|||
|
Category |
Item |
Performance Requirements |
||
|
Mechanical Properties |
Tensile Strength |
≥500 MPa |
||
|
Flexural Strength |
≥500 MPa |
|||
|
Compressive Strength |
≥300 MPa |
|||
|
Physical Properties |
Flame Resistance |
V-1/0 Grade |
||
|
Chemical Resistance |
Acid Resistance (80°C, 5wt% HCl solution, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥80% |
||
|
Alkali Resistance (80°C, 10wt% NaOH solution, 7 days) |
No powdering, no cracks, flexural modulus retention rate ≥50% |
|||
|
Salt Resistance (80°C, 3wt% NaCl solution, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
Aging Resistance |
Artificial Climate Aging (Method A-1, irradiance, cycle 1, 300h) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
||
|
Hygrothermal Aging (60°C, 93%RH, 12h~25°C/93%RH, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
Constant Humidity and Heat Aging (60°C/93%RH, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
High-Temperature Resistance (300°C~400°C) |
No powdering, no cracks, flexural modulus retention rate ≥80% |
|||
|
Electrical Properties |
Surface Resistivity |
≥1.0 × 10^10 Ω |
||
|
Volume Resistivity |
≥1.0 × 10^10 Ω•m |
|||
|
Density |
solid |
≤0.25 g/cm³ |
||
|
hollow |
≤2 g/cm³ |
|||
|
Model |
Length (m) |
Top Diameter (mm) |
Standard load (P) |
Standard bending moment (kN.m) |
|
Z Ø190×8×I×FH |
8 |
190 |
3 |
19.35 |
|
Z Ø190×9×I×FH |
9 |
190 |
3 |
21.75 |
|
Z Ø190×10×I×FH |
10 |
190 |
3 |
24.15 |
|
Z Ø190×12×I×FH |
12 |
190 |
3 |
29.25 |
|
Z Ø190×15×I×FH |
15 |
190 |
3 |
36.75 |
|
Z Ø190×18×I×FH |
18 |
190 |
3 |
/ |
|
Z Ø190×8×K×FH |
8 |
190 |
4 |
25.80 |
|
Z Ø190×9×K×FH |
9 |
190 |
4 |
29.00 |
|
Z Ø190×10×K×FH |
10 |
190 |
4 |
32.20 |
|
Z Ø190×12×K×FH |
12 |
190 |
4 |
39.00 |
|
Z Ø190×15×K×FH |
15 |
190 |
4 |
49.00 |
|
Z Ø190×18×K×FH |
18 |
190 |
4 |
61.00 |
|
Z Ø190×8×M×FH |
8 |
190 |
6 |
38.70 |
|
Z Ø190×9×M×FH |
9 |
190 |
6 |
43.50 |
|
Z Ø190×10×M×FH |
10 |
190 |
6 |
48.30 |
|
Z Ø190×12×M×FH |
12 |
190 |
6 |
58.50 |
|
Z Ø190×15×M×FH |
15 |
190 |
6 |
73.50 |
|
Z Ø190×18×M×FH |
18 |
190 |
6 |
91.50 |
|
Z Ø230×8×M×FH |
8 |
230 |
6 |
38.70 |
|
Z Ø230×9×M×FH |
9 |
230 |
6 |
43.50 |
|
Z Ø230×10×M×FH |
10 |
230 |
6 |
48.30 |
|
Z Ø230×12×M×FH |
12 |
230 |
6 |
58.50 |
|
Z Ø230×15×M×FH |
15 |
230 |
6 |
73.50 |
|
Z Ø230×18×M×FH |
18 |
230 |
6 |
91.50 |
