As a direct factory exporter and supplier of GFRP utility poles, we serve utilities, EPC contractors, and telecom builders who need corrosion-resistant, non-conductive poles for overhead distribution, coastal power lines, and humid or saline environments. Our GFRP poles are lightweight, high-strength, and engineered to replace wood, steel, and concrete in projects where moisture, salt spray, and chemical exposure shorten service life. Because we manufacture in-house, buyers get factory-direct pricing, customizable lengths and wall thicknesses, and consistent quality control from raw pultrusion to finished pole. If you are sourcing composite utility poles for transmission, distribution, or communication networks, our team can quote your specification and ship worldwide.
كتيب منتجات شركة هيبي فورتيس للتكنولوجيا المحدودة
Product Advantages
Corrosion Resistance for Harsh Environments
GFRP utility poles are engineered to resist corrosion far better than wood, steel, or concrete. They do not rust, rot, or degrade when exposed to moisture, salt spray, acid rain, or industrial chemicals. This makes them especially suitable for coastal power lines, offshore installations, wastewater treatment sites, and humid tropical regions, where traditional poles often require frequent replacement and maintenance.
Electrical Non-Conductivity and Safety
Unlike steel or concrete poles, GFRP poles are naturally non-conductive. This reduces the risk of electrical hazards for line workers and the public, and it can simplify insulation requirements in overhead distribution and transmission projects. The inherent dielectric properties make GFRP a preferred choice for utilities operating in high-voltage environments or areas with lightning exposure.
High Strength-to-Weight Ratio
GFRP utility poles offer an excellent strength-to-weight ratio, meaning they can carry significant mechanical loads while remaining much lighter than steel or concrete alternatives. This reduces transportation costs, allows easier handling in remote or difficult terrain, and enables faster installation with smaller cranes or even manual crews in some cases.
Long Service Life and Low Maintenance
With proper design and installation, GFRP poles can deliver a service life of 50 years or more. They resist UV degradation, moisture absorption, and biological attack from insects or fungi. Because they do not rot or corrode, utilities can significantly cut down on inspection cycles, repair costs, and premature pole replacement, lowering total cost of ownership over the asset's lifetime.
Application Scenarios
Solar power plants and renewable energy sites often use FRP utility poles for panel array supports, inverter station connections and grid tie-in lines. The poles are non-conductive, UV-resistant and unaffected by the temperature fluctuations typical of large open installations. Their lightweight nature also reduces foundation requirements and installation costs, making them an efficient solution for utility-scale solar farms, especially in remote or environmentally sensitive locations.
Along railways, highways and toll roads, FRP utility poles support signaling systems, lighting, cameras, communication equipment and emergency power lines. Their resistance to vibration, weather and corrosion keeps them stable in high-traffic environments, while their non-conductive properties improve safety for maintenance crews working near electrical systems. Transportation authorities also value their low maintenance profile, which minimizes traffic disruption during inspection or repair work.

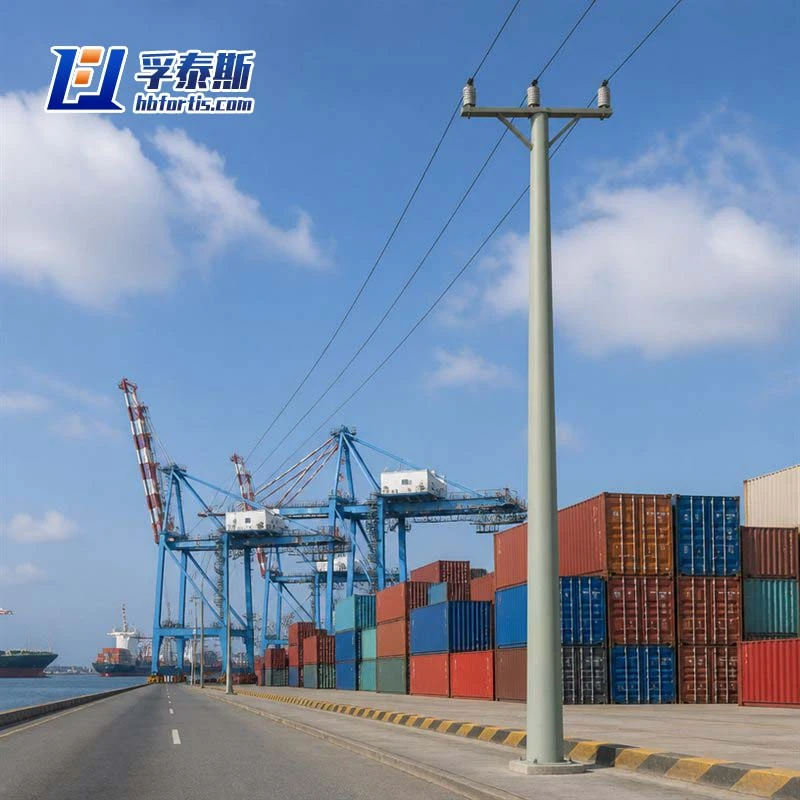

In coastal regions, salt spray and high humidity rapidly degrade wooden and steel poles. FRP utility poles are inherently resistant to saltwater corrosion, making them a preferred choice for seaside towns, ports, marinas, offshore platforms and island electrification projects. They do not rust, rot or attract marine borers, and they maintain their mechanical properties even after years of exposure to aggressive marine conditions, which significantly reduces replacement cycles and maintenance costs.
Parameter Specifications
|
Product |
FRP Utility pole / telephone pole |
|||
|
Category |
Item |
Performance Requirements |
||
|
Mechanical Properties |
Tensile Strength |
≥500 MPa |
||
|
Flexural Strength |
≥500 MPa |
|||
|
Compressive Strength |
≥300 MPa |
|||
|
Physical Properties |
Flame Resistance |
V-1/0 Grade |
||
|
Chemical Resistance |
Acid Resistance (80°C, 5wt% HCl solution, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥80% |
||
|
Alkali Resistance (80°C, 10wt% NaOH solution, 7 days) |
No powdering, no cracks, flexural modulus retention rate ≥50% |
|||
|
Salt Resistance (80°C, 3wt% NaCl solution, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
Aging Resistance |
Artificial Climate Aging (Method A-1, irradiance, cycle 1, 300h) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
||
|
Hygrothermal Aging (60°C, 93%RH, 12h~25°C/93%RH, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
Constant Humidity and Heat Aging (60°C/93%RH, 28 days) |
No powdering, no cracks, flexural modulus retention rate ≥85% |
|||
|
High-Temperature Resistance (300°C~400°C) |
No powdering, no cracks, flexural modulus retention rate ≥80% |
|||
|
Electrical Properties |
Surface Resistivity |
≥1.0 × 10^10 Ω |
||
|
Volume Resistivity |
≥1.0 × 10^10 Ω•m |
|||
|
Density |
solid |
≤0.25 g/cm³ |
||
|
hollow |
≤2 g/cm³ |
|||
|
Model |
Length (m) |
Top Diameter (mm) |
Standard load (P) |
Standard bending moment (kN.m) |
|
Z Ø190×8×I×FH |
8 |
190 |
3 |
19.35 |
|
Z Ø190×9×I×FH |
9 |
190 |
3 |
21.75 |
|
Z Ø190×10×I×FH |
10 |
190 |
3 |
24.15 |
|
Z Ø190×12×I×FH |
12 |
190 |
3 |
29.25 |
|
Z Ø190×15×I×FH |
15 |
190 |
3 |
36.75 |
|
Z Ø190×18×I×FH |
18 |
190 |
3 |
/ |
|
Z Ø190×8×K×FH |
8 |
190 |
4 |
25.80 |
|
Z Ø190×9×K×FH |
9 |
190 |
4 |
29.00 |
|
Z Ø190×10×K×FH |
10 |
190 |
4 |
32.20 |
|
Z Ø190×12×K×FH |
12 |
190 |
4 |
39.00 |
|
Z Ø190×15×K×FH |
15 |
190 |
4 |
49.00 |
|
Z Ø190×18×K×FH |
18 |
190 |
4 |
61.00 |
|
Z Ø190×8×M×FH |
8 |
190 |
6 |
38.70 |
|
Z Ø190×9×M×FH |
9 |
190 |
6 |
43.50 |
|
Z Ø190×10×M×FH |
10 |
190 |
6 |
48.30 |
|
Z Ø190×12×M×FH |
12 |
190 |
6 |
58.50 |
|
Z Ø190×15×M×FH |
15 |
190 |
6 |
73.50 |
|
Z Ø190×18×M×FH |
18 |
190 |
6 |
91.50 |
|
Z Ø230×8×M×FH |
8 |
230 |
6 |
38.70 |
|
Z Ø230×9×M×FH |
9 |
230 |
6 |
43.50 |
|
Z Ø230×10×M×FH |
10 |
230 |
6 |
48.30 |
|
Z Ø230×12×M×FH |
12 |
230 |
6 |
58.50 |
|
Z Ø230×15×M×FH |
15 |
230 |
6 |
73.50 |
|
Z Ø230×18×M×FH |
18 |
230 |
6 |
91.50 |
