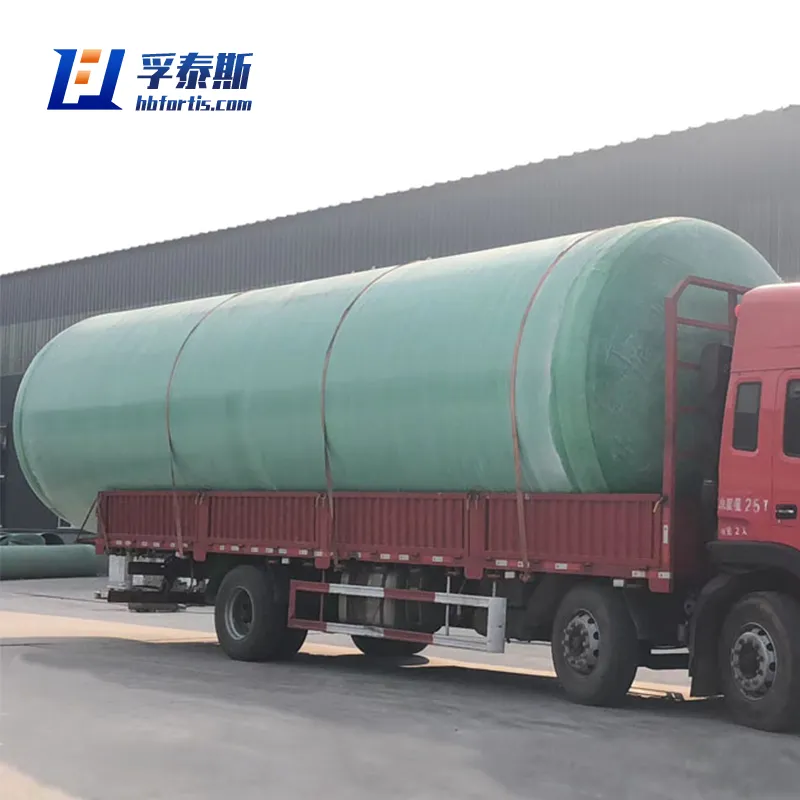

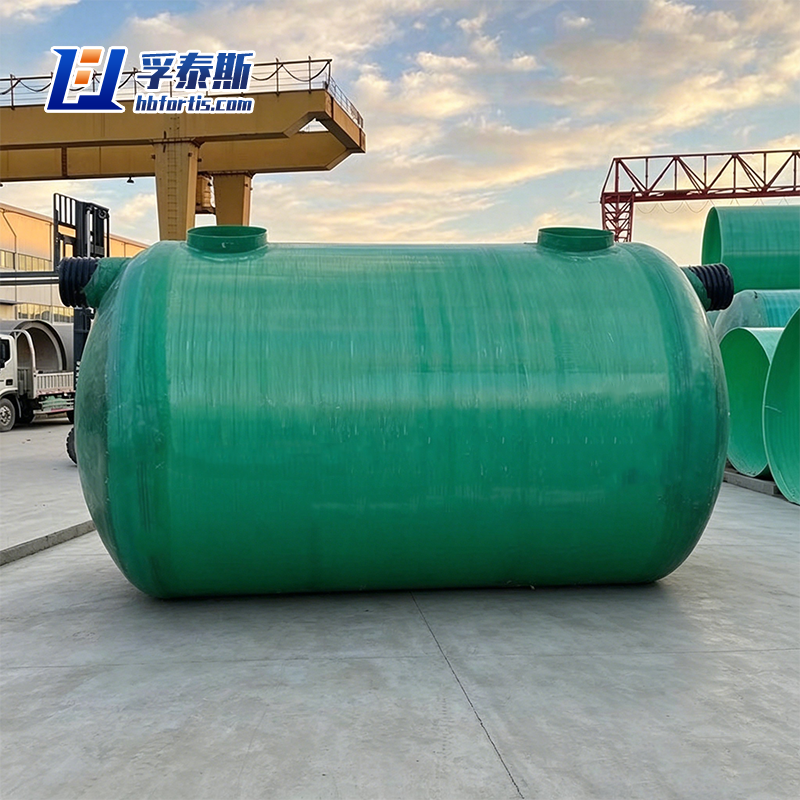

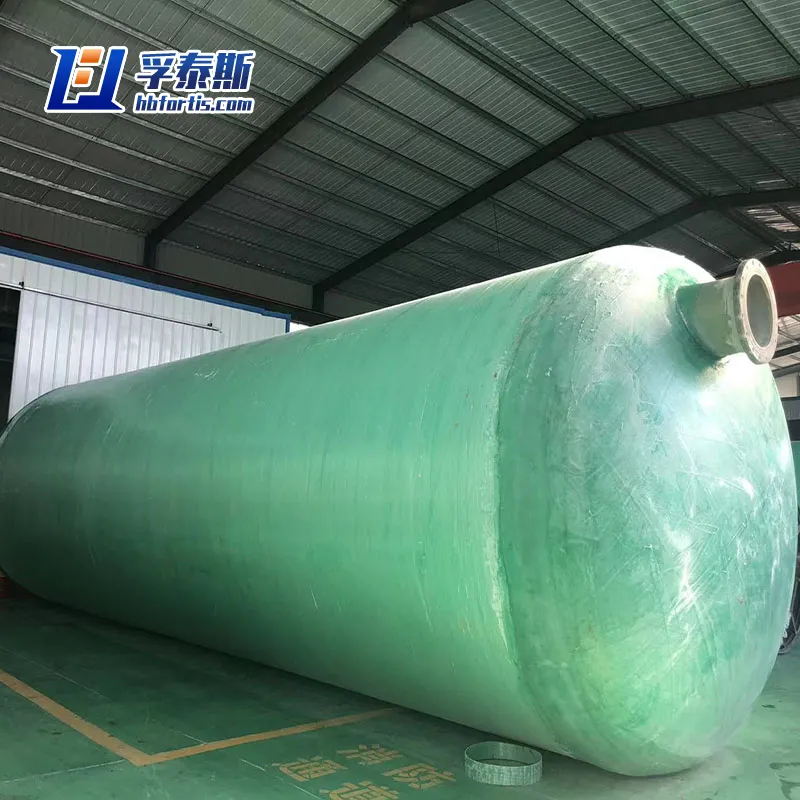

Off-grid campsite owners and remote cabin builders often struggle with heavy concrete tanks and soil corrosion. Our FRP septic tank solves this with a high-strength, lightweight fiberglass body that resists freezing, chemicals, and root intrusion. Designed for small-scale applications such as glamping sites, forest cabins, hunting lodges, and RV dumping stations, this underground blackwater treatment system requires no heavy machinery for installation. The non-porous surface prevents sludge adhesion and odors. With customizable inlet heights and capacities from 500L to 10,000L, it adapts to seasonal or year-round use. Each tank is hand-laid with food-grade resin and tested for 72-hour water sealing. Factory supplies to North America, Europe, and Australia. No MOQ for stock sizes. Perfect for replacing failed steel or plastic tanks in remote areas.
شركة هيبي فورتيس للتكنولوجيا، المحدودة
Product Advantages
1.Leak-proof, acid and alkali resistant, safe, durable, and robust.
Made of synthetic resin, glass fiber, and other high-strength, acid and alkali resistant polymer materials, it is manufactured via computer-controlled mechanical filament winding technology. This process provides the tank with superior hoop strength and structural stability.
2.Fast Construction and Easy Installation
The construction speed is fast, and it can be installed and put into use on the same day. On-site, only the foundation pit needs to be excavated as required. It can be used two hours after installation. The prefabricated integral wound structure facilitates rushing the construction period and avoids the risk of foundation pit collapse due to time delays.
3.No special management required; long sludge cleaning interval.
With an underground installation design, it requires no power supply, no special management, and almost no maintenance. It is recommended to remove sludge once every 5 to 9 months.
4.Pollution-free in use with high environmental benefits.
The filament wound FRP septic tank features excellent sealing performance and leak-proof integrity. It does not contaminate surface water nor corrode the surrounding environment (such as flowers, plants, and trees). After multiple sedimentation and fermentation processes in the tank, parasite eggs and pathogens are effectively eliminated, and the effluent from the clarification chamber is purified, harmless organic fertilizer.
Application Scenarios
Applicable to the treatment and reuse of domestic sewage in residential districts, villages, towns, office buildings, shopping malls, hotels, restaurants, sanatoriums, government agencies, schools, military camps, hospitals, expressways, railways, factories, mines, tourist attractions and other places.
Treatment and reuse of industrial organic wastewater from small and medium-sized enterprises (SMEs) such as slaughtering, aquatic product processing, and food processing industries.
Parameter Specifications
|
Product |
FRP Septic Tank (Filament Winding) |
||||
|
|
|||||
|
Model |
Volume(m³) |
Diameter(mm) |
Total Length(mm) |
Shell Thickness (mm) |
Number of Baffles |
|
FT-STF14 |
20 |
2300 |
4850 |
7 |
1 |
|
FT-STF15 |
25 |
2300 |
6050 |
7 |
2 |
|
FT-STF16 |
30 |
2300 |
7250 |
7 |
2 |
|
FT-STF17 |
30 |
2800 |
4900 |
7 |
2 |
|
FT-STF18 |
35 |
2800 |
5700 |
7 |
2 |
|
FT-STF19 |
40 |
2800 |
6500 |
7 |
2 |
|
FT-STF20 |
45 |
2800 |
7300 |
7 |
2 |
|
FT-STF21 |
50 |
2800 |
8100 |
7 |
2 |
|
FT-STF22 |
50 |
3200 |
6250 |
7 |
2 |
|
FT-STF23 |
55 |
2800 |
8900 |
8 |
2 |
|
FT-STF24 |
60 |
2800 |
9800 |
8 |
2 |
|
FT-STF25 |
60 |
3200 |
7500 |
8 |
2 |
|
FT-STF26 |
65 |
2800 |
10600 |
8 |
2 |
|
FT-STF27 |
70 |
2800 |
11400 |
8 |
2 |
|
FT-STF28 |
75 |
2800 |
12200 |
8 |
2 |
|
FT-STF29 |
75 |
3200 |
9350 |
8 |
2 |
|
FT-STF30 |
80 |
3200 |
10000 |
8 |
2 |
|
FT-STF31 |
90 |
3200 |
11250 |
8 |
2 |
|
FT-STF32 |
100 |
3200 |
12450 |
8 |
2 |
|
FT-STF33 |
100 |
3500 |
10400 |
11 |
2 |
|
FT-STF34 |
110 |
3500 |
11450 |
12 |
2 |
|
FT-STF35 |
120 |
3500 |
12500 |
12 |
2 |
|
FT-STF36 |
130 |
3500 |
13550 |
13 |
2 |
