FRP Horizontal Storage Tank Chemical | Factory-Direct Supply

Name: FRP Horizontal Storage Tank Chemical | Factory-Direct Supply
Brand: شركة هيبي فورتيس للتكنولوجيا المحدودة

As a dedicated FRP horizontal storage tank exporter and factory-direct supplier, we engineer corrosion-resistant, UV-stabilized fiberglass vessels tailored for aggressive chemical containment, potable water reserves, and industrial effluent management. Our horizontal configuration optimizes space efficiency in low-clearance plants and skid-mounted systems, while our in-house filament-winding process ensures uniform wall thickness and zero delamination under cyclic loading. Backed by ISO 9001 and ASME RTP-1 standards, we provide full documentation – from hydrostatic test reports to 3D layout drawings – enabling seamless integration into petrochemical, mining, and municipal projects. With fixed pricing free from trading markups and 24/7 technical support, we shorten procurement cycles and guarantee on-spec delivery to global ports.

كتيب منتجات شركة هيبي فورتيس للتكنولوجيا المحدودة

تحميل

استفسر الآن المنتج التالي

Product Advantages Parameter Specifications

Product Advantages

Space-Saving Horizontal Geometry for Low-Headroom Sites
Unlike vertical tanks that require tall foundations and overhead clearance, our horizontal FRP tanks are engineered to fit snugly into cramped pump rooms, underground pits, or existing skid frames. The low-profile design reduces wind load exposure for outdoor installations and allows side-by-side modular expansion without costly structural modifications. This makes them the preferred choice for retrofitting projects in chemical plants, shipyards, and containerized treatment systems where every cubic meter counts.

Tailored Resin Systems for Extreme Chemical Aggression
We do not use a one-resin-fits-all approach. Instead, we formulate isophthalic, vinyl ester, or bisphenol-A resins based on your stored medium—whether it’s 37% hydrochloric acid, caustic soda, ferric chloride, or demineralized water. Our anti-permeation inner liners (up to 2.5mm thick) effectively block molecular penetration, preventing blistering and stress cracking even under continuous immersion. This chemical-specific engineering extends tank life far beyond carbon steel or PE alternatives in the same service.

Superior Structural Integrity via Helical Filament Winding
Every horizontal tank is produced on precision CNC filament-winding machines that apply continuous glass rovings at mathematically optimized helical angles. This creates a monolithic shell with bidirectional load distribution, eliminating weak seam lines found in hand-layup or rotationally molded units. The result is exceptional hoop strength and axial stiffness, allowing our tanks to withstand vacuum conditions (-0.5 bar) and surge pressures without deformation—a critical advantage for suction-line storage in pumping stations.

Parameter Specifications

Product	Horizontal Storage Tank

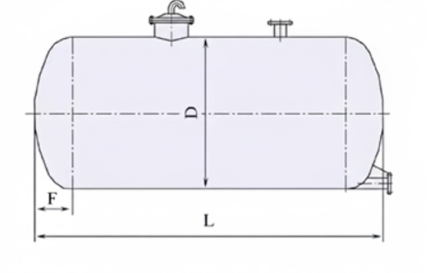

F=D/4
Model	Volume(m³)	Diameter(mm)	Height(mm)	Number of Supports N1
FT-HST1	1	1000	1450	2
FT-HST2a	2	1000	2730	3
FT-HST2b	2	1200	1990	2
FT-HST2c	2	1400	1560	2
FT-HST3a	3	1000	4010	4
FT-HST3b	3	1200	2870	2
FT-HST3c	3	1400	2200	2
FT-HST4a	4	1200	3760	3
FT-HST4b	4	1400	2850	3
FT-HST5	5	1400	3500	3
FT-HST6	6	1600	3300	2
FT-HST7	7	1600	3800	3
FT-HST8a	8	1600	4300	3
FT-HST9	9	1600	4780	3
FT-HST10a	10	1600	5300	3
FT-HST10b	10	2000	4250	3
FT-HST11a	11	1600	5800	4
FT-HST11b	11	2000	4640	3
FT-HST12a	12	1600	6280	4
FT-HST12b	12	2000	5040	3
FT-HST12c	12	2200	3540	2
FT-HST15a	15	2000	6220	3
FT-HST15b	15	2200	4330	2
FT-HST15c	15	2400	3750	2
FT-HST18a	18	2000	7400	4
FT-HST18b	18	2200	5120	2
FT-HST18c	18	2400	4410	2
FT-HST20a	20	2000	8190	4
FT-HST20b	20	2200	5650	3
FT-HST20c	20	2400	4850	2
FT-HST20d	20	2600	4220	2
FT-HST25a	25	2000	8310	4
FT-HST25b	25	2200	6960	3
FT-HST25c	25	2400	5960	2
FT-HST25d	25	2600	5160	2
FT-HST25e	25	2800	3740	2
FT-HST30a	30	2200	8280	4
FT-HST30b	30	2400	7060	3
FT-HST30c	30	2600	6100	3
FT-HST30d	30	2800	4560	2
FT-HST30e	30	3000	4100	2
FT-HST35a	35	2400	8170	3
FT-HST35b	35	2600	7050	3
FT-HST35c	35	2800	5370	2
FT-HST35d	35	3000	4820	2
FT-HST40a	40	2400	9270	3
FT-HST40b	40	2600	7990	3
FT-HST40c	40	2800	6180	2
FT-HST40d	40	3000	5520	2
FT-HST50a	50	2600	9870	4
FT-HST50b	50	2800	6990	2
FT-HST50c	50	3000	6240	3
FT-HST60a	60	2800	8620	3
FT-HST60b	60	3000	7660	3
FT-HST70a	70	2800	10240	3
FT-HST70b	70	3000	9050	3
FT-HST80a	80	3000	10470	4
FT-HST80b	80	3000	11880	4
